Product introduction：

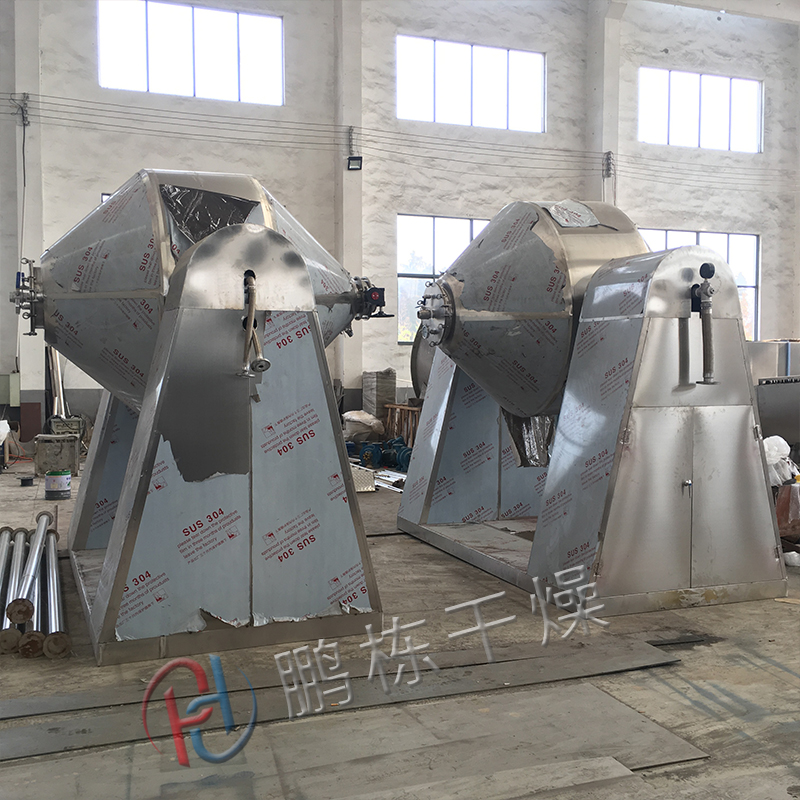

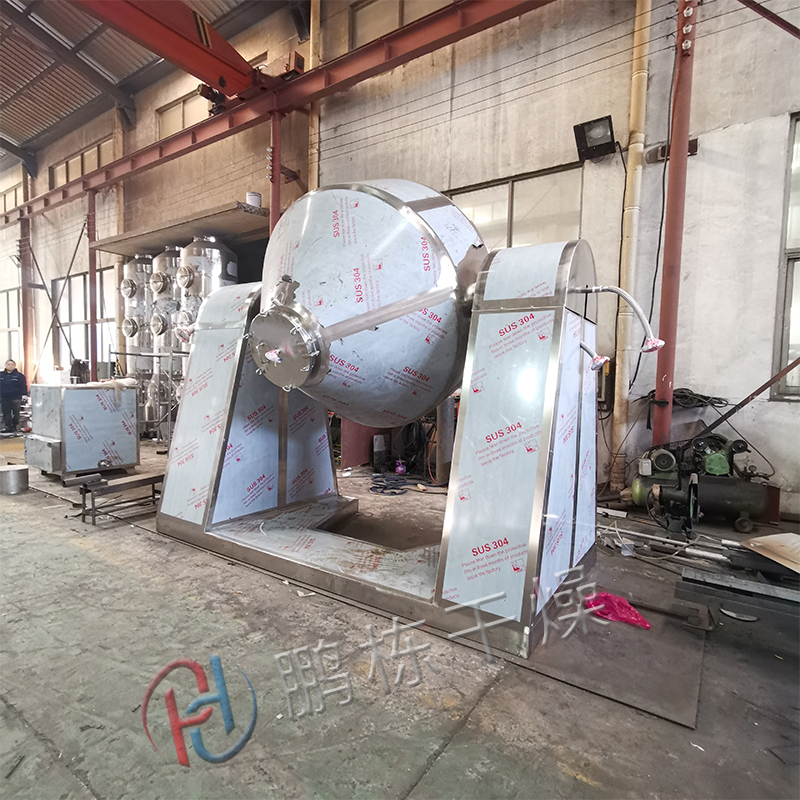

SZH series double-cone mixer will powder or granular materials through vacuum transport or artificial feeding into the double-cone container, with the continuous rotation of the capacity, the material in the container for complex impact movement, to achieve uniform mixing. The machine has the advantages of energy saving, easy operation, low labor intensity and high work efficiency. This machine is suitable for mixing powder and granular materials in pharmaceutical, chemical, food, building materials and other industries.
Technical parameter：
Type | SZH-0.3 | SZH-0.5 | SZH-1.0 | SZH-1.5 | SZH-2.0 | SZH-2.5 | SZH-3.0 | SZH-4.0 | SZH-5.0 | SZH-6.0 | SZH-10 |
Productive capacity (kg／h) | 120 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 | 4000 |
Feed time (min) | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 | 8-12 | 10-15 | 15-20 | 18-25 | 20-30 |
Mixing time (min) | 4-8 | 4-8 | 6-15 | 6-15 | 6-15 | 6-15 | 8-20 | 8-20 | 8-20 | 8-20 | 8-20 |
Full volume (m3) | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 | 10 |
Stirring speed (rpm) | 20 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 10 | 8 |
Motor power (kw) | 1.1 | 2.2 | 4 | 4 | 5 | 7.5 | 7.5 | 11 | 15 | 18.5 | 30 |
Working principle：
The motor and reducer drive the mixing tank to rotate by the gear drive, and the prepared powder is added to the mixing tank when working. Through the rotation of the tank, the material is repeatedly polymerized and separated by its gravity and centrifugal force to achieve uniform mixing, and the mixed material is discharged from the discharge port by its own weight.
Product characteristics：
● The machine will powder or granular materials through vacuum transport or artificial feeding into the double-cone container, with the continuous rotation of the container, the material in the container for complex impact movement, to achieve uniform mixing.
● The machine has the advantages of energy saving, easy operation, low labor intensity and high work efficiency.
