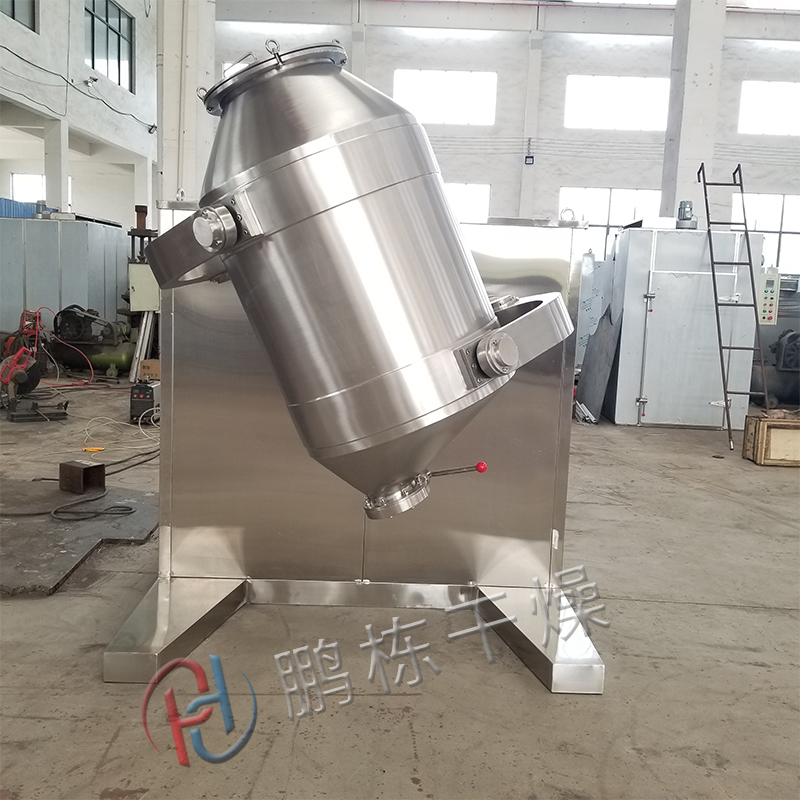

Product introduction：
In the operation of the three-dimensional motion mixer, due to the multi-direction operation of the three-dimensional motion mixer barrel, the flow and diffusion of various materials are accelerated during the mixing process, and the specific gravity segregation and accumulation of materials caused by the centrifugal force of the general mixer are reduced, and there is no dead Angle in the mixing to ensure the quality of the mixed materials.
Technical parameter：
Model | SYH-1 | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1200 | SYH-1500 | |
Bucket volume(L) | 1 | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | |
Loading capacity(l) | 0.8 | 4 | 12 | 40 | 80 | 160 | 320 | 480 | 640 | 800 | 960 | 1200 | |
Loading weight (kg) | 0.5 | 2.5 | 7.5 | 25 | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 750 | |
Spindle speed(r/min) | 0-28 | 0-8 | |||||||||||
Motor power(kw) | 0.12 | 0.25 | 0.37 | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 7.5 | 7.5 | 11 | 11 | |
Overall dimension(mm) | L | 500 | 700 | 750 | 1400 | 1700 | 1800 | 2100 | 2400 | 2600 | 2650 | 2950 | 3100 |
W1 | 600 | 650 | 1000 | 1000 | 1200 | 1400 | 1800 | 2200 | 2380 | 2500 | 2650 | 2850 | |
H | 450 | 450 | 700 | 1200 | 1500 | 1600 | 1950 | , , 2350 | 2500 | 2600 | 2750 | 3000 | |
W2 | 500 | 550 | 650 | 850 | 1250 | 1350 | 1650 | 1750 | 2000 | 2100 | 2200 | 2250 | |
Machine weight(kg) | 50 | 150 | 200 | 300 | 500 | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 3500 | |

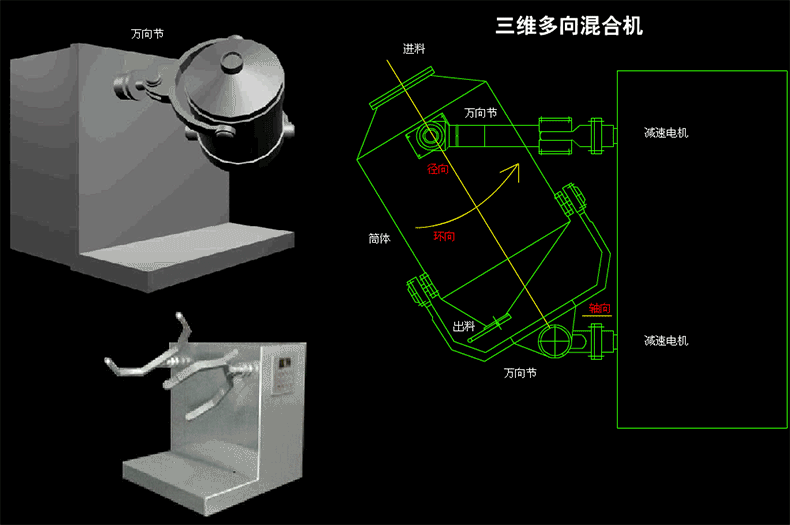

Working principle：
● In operation, the machine accelerates the flow and diffusion effect due to multi-direction mixing, which solves the specific gravity segregation and accumulation phenomenon of the general mixer caused by centrifugal force, and there is no dead Angle in mixing to ensure the quality of the mixed material.
● The machine is composed of frame, transmission system, electrical control system, multi-direction motion mechanism, mixing barrel and other components. The mixing barrel in contact with the material is made of stainless steel, and the inside and outside walls of the barrel are polished.
Product characteristics：
● The mixing barrel body has multi-direction movement, so that the materials in the barrel body cross mixing;
● The mixing effect is high, the uniformity can reach more than 99%, and the loading coefficient can reach 90%(the ordinary mixer is 40% to 60%);
● Short mixing time and high efficiency;
● The material pollution is small, the discharging is convenient, the cleaning is easy, the operation is simple.
