Product introduction：

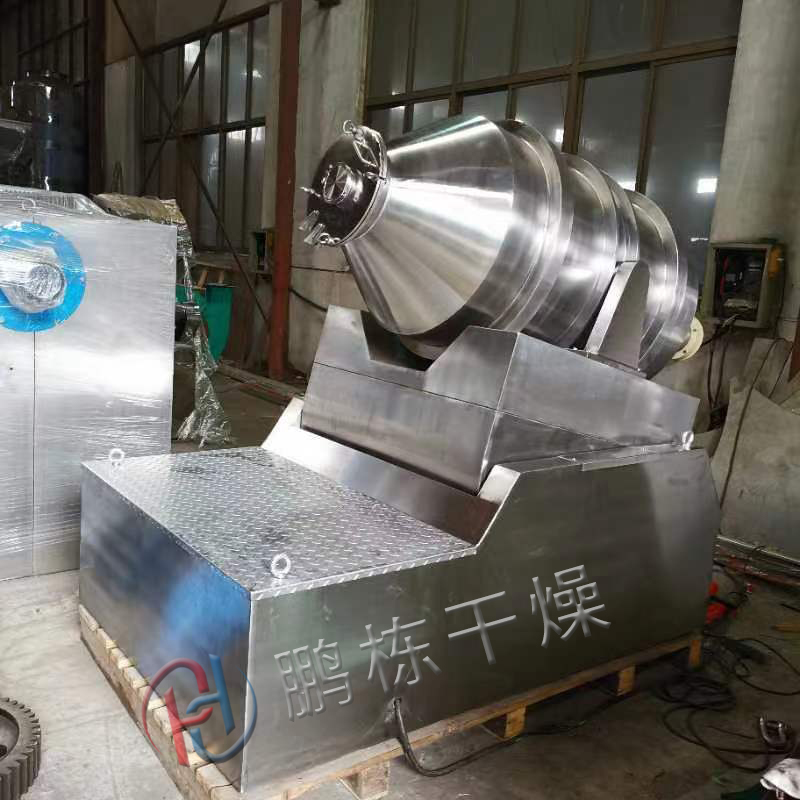

Two-dimensional mixer refers to the mixer whose drum can move in two directions at the same time.
The two directions of movement are respectively the rotation of the drum, and the swing of the drum with the swing frame. The mixed material rotates, turns and mixes with the drum in the drum, and at the same time, the mixing movement occurs left and right with the swing of the drum. Under the joint action of these two movements, the material is fully mixed in a short time.
Technical parameter：
Model | Barrel volume L | Loading capacity L | Loading quantity kg/ batch | Number of shaking and turning (times/min) | Total motor power kw | Overall dimension mm | Gross weight kg | Barrel weight kg |
EYH-10 | 10 | 5 | 2.5 | 85 | 0.021 | 310*400*450*395 | 15 | 4 |
EYH-30 | 30 | 15 | 7.5 | 61 | 0.19 | 540*580*900*700 | 60 | 8.5 |
EYH-60 | 60 | 30 | 15 | 50 | 0.4 | 700*730*1100*990 | 115 | 15 |
EYH-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800*1050*1450*1340 | 190 | 50 |
EYH-300 | 300 | 150 | 75 | 30 | 1.15 | 900*1350*1550*1400 | 340 | 60 |
EYH-600 | 600 | 300 | 150 | 23.6 | 3 | 1170*1640*2050*1910 | 1150 | 140 |
EYH－800 | 800 | 400 | 200 | 19.8 | 3 | 1320*1950*2150*2000 | 1600 | 200 |
EYH-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1360*2, 040*2300*2170 | 1700 | 240 |
EYH－1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1580*2400*2550*2330 | 2000 | 320 |
EYH-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1740*2600*2770*2550 | 2600 | 430 |
EYH-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1800*2900*2950*2800 | 3500 | 620 |
EYH-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 1970*3300*3300*2950 | 4100 | 700 |
EYH-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2300*2900*3800*3100 | 6100 | 1100 |
EYH-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2540*4100*4050*3650 | 7900 | 1450 |
EYH-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2900*4500*4400*4020 | 9500 | 1650 |
The above data is for reference only, our company reserves the right to change the above data, if there is any change, without prior notice.
Working principle：
The two-dimensional mixer is mainly composed of three parts: a drum, a swinging frame and a frame. The rotating cylinder is mounted on the swinging frame, supported by four rollers and axial positioning by two stop wheels. In the four supporting rollers, two of the transmission wheels are dragged by the rotating power system to turn the rotating cylinder. The swinging frame is driven by a set of crank pendulum rod mechanisms, the crank pendulum rod mechanism is on the frame, and the swinging frame is supported by the bearing assembly on the frame.
Product characteristics：
The rotor of the EYH two-dimensional mixer can carry out two movements at the same time, one is the rotation of the rotor, and the other is the swing of the rotor with the swing frame. At the same time, the mixed material rotates, turns and mixes with the drum in the drum, and the mixing movement occurs left and right with the swing of the drum. Under the joint action of these two movements, the material is fully mixed in a short time, which has the characteristics of rapid mixing, large mixing amount and convenient discharging.
