Product introduction：

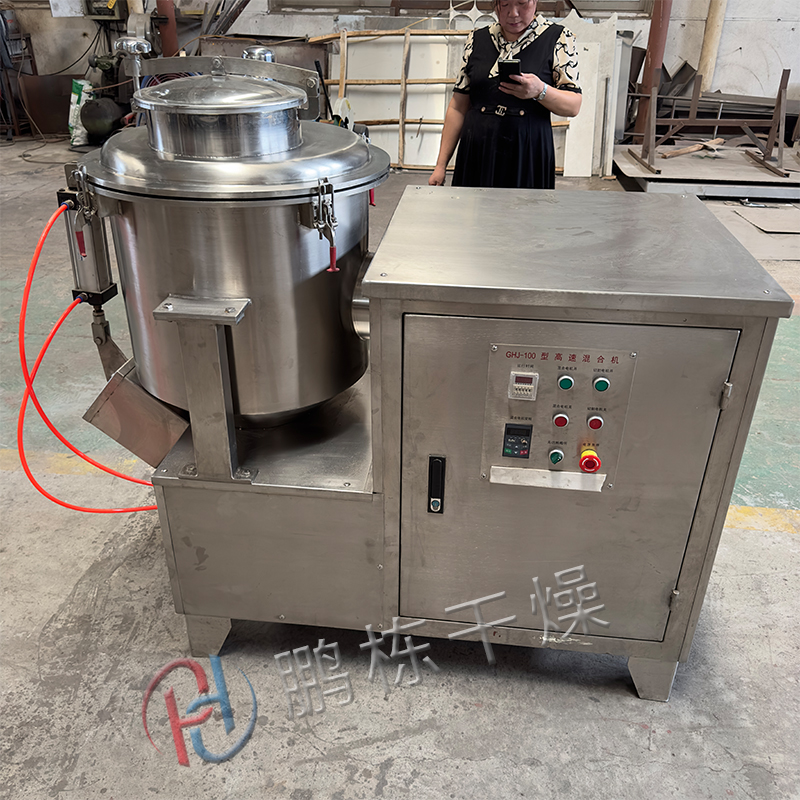

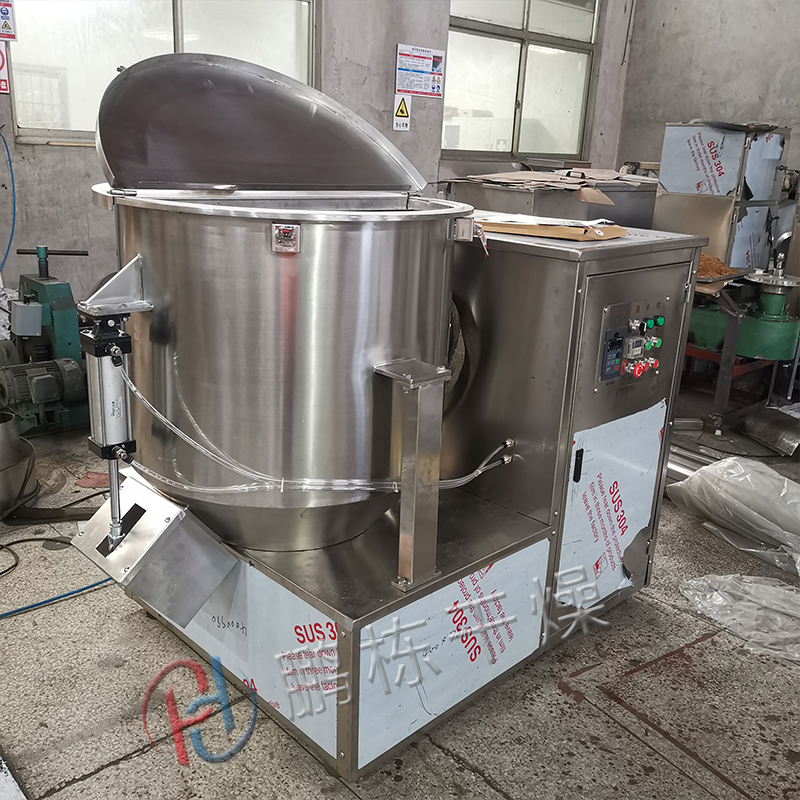

Wet mixing granulation machine can complete the process of mixing humidification and granulation at one time, which is suitable for pharmaceutical, food, chemical and other industries. It is in line with the requirements of pharmaceutical production GMP equipment, with stability, low consumption and other characteristics.
Technical parameter：
Item | Specification | ||||||||
Name | Unit | 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
Volume | L | 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
Yield | kg/batch | 3 | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
Mixing speed | r.p.m | 300/600 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
Mixed power | kw | 1.5/2.2 | 4/5.5 | 6.5/8 | 9/11 | 9/11 | 13/16 | 18.5/22 | 22/30 |
Cutting speed | r.p.m | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
Cutting power | kw | 0.85/1.1 | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9/11 |
Overall dimension | m | 1.35 ×0.7 ×1.15 | 165 ×0.85 ×1.35 | 1.8 ×0.8 ×1.4 | 2.1 ×0.85 ×1.5 | 2.05 ×0.85 ×1.5 | 2.2 ×0.9 ×1.55 | 2.35 ×1.05 ×1.55 | 2.4 ×1.05 ×1.65 |
Working principle：
The powder material and adhesive are fully mixed into wet soft material from the bottom mixing paddle in a cylindrical (conical) container, and then cut into uniform wet particles by a side-mounted high-speed grinding paddle.
Product characteristics：
● The wet mixing granulator adopts horizontal cylinder structure and has reasonable structure.
● Inflatable sealing drive shaft, can be switched to water when cleaning.
● Wet mixing granulator liquid granulation, the granulation myopia spherical, good fluidity.
● The wet mixing granulator reduces the adhesive by 25% compared with the traditional process and shorens the drying time.
● Each batch of dry mixing 2 minutes, granulation 1-4 minutes, the efficiency is 4-5 times higher than the traditional process.
● Wet mixing granulator is completed in the same batch of closed containers, dry mixing - wet mixing - granulation, process reduction, in line with GMP specifications.
● The whole operation of the wet mixing granulator has strict stability protection measures.
